Case Study: 16-Camera Commercial Security System Installed Near 76110 in Fort Worth

This case study documents a real-world commercial security camera installation project completed by DFW Wholesale Security for a large warehouse facility in the Fort Worth area near the 76110 ZIP code. The project involved designing and installing a 16-camera surveillance system with professional network infrastructure, advanced recording capabilities, and remote monitoring features for a business facing significant inventory loss and unauthorized access challenges.

Client Background and Security Challenges

Our client operated a Fort Worth warehouse facility near downtown TCU area (76110 ZIP code) that stored valuable inventory, equipment, and materials. The business faced several security challenges:

• Recurring inventory loss suggesting employee theft or unauthorized entry
• No video documentation of after-hours facility access or movement
• Inability to track which employees accessed specific areas during their shifts
• Vulnerability to break-ins due to limited security monitoring
• No ability to investigate incidents or review evidence after they occurred

The warehouse manager contacted DFW Wholesale Security seeking a comprehensive surveillance solution that would deter theft, document all facility access and movement, and provide evidence for investigation of security incidents.

Site Assessment and System Design

Our technicians conducted a thorough site assessment of the Fort Worth warehouse facility, evaluating:

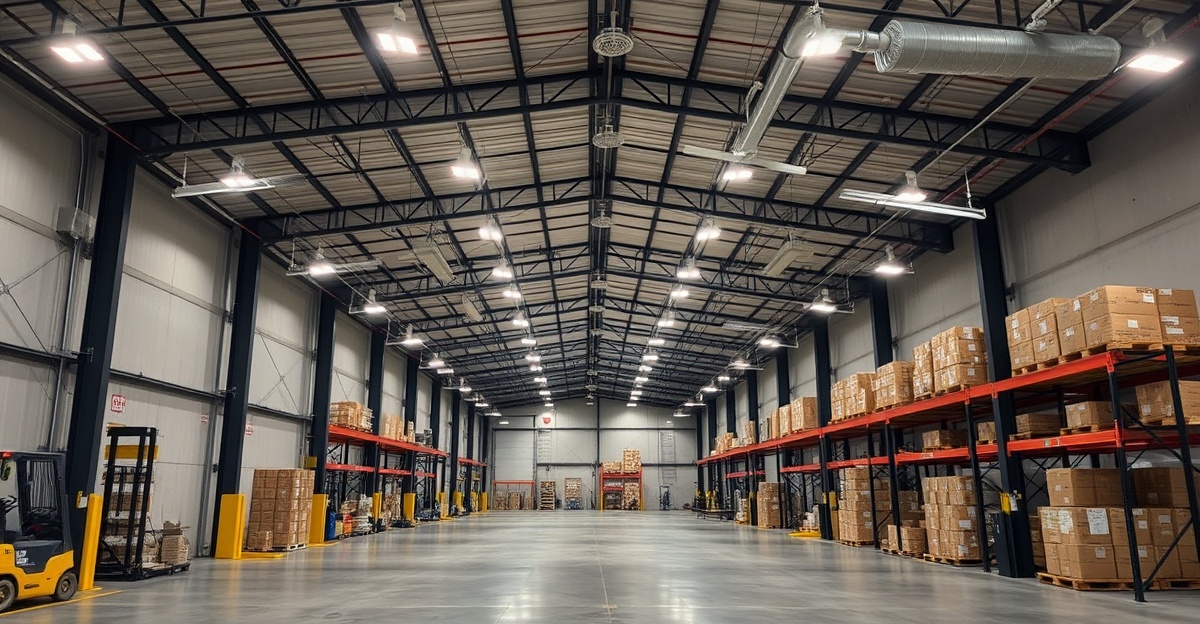

• Facility layout: Approximately 12,000 sq ft warehouse with high ceilings, multiple doors, loading dock, office areas, and receiving area
• Vulnerable areas: High-value inventory locations, entry points, shipping/receiving areas, hallways, and parking area
• Lighting conditions: Interior warehouse with minimal natural light, requiring night vision cameras
• Network infrastructure: Existing business network sufficient for additional security camera bandwidth
• Power and cable routing: Identified paths through ceiling, walls, and conduits for ethernet cable installation

Based on the assessment, our design team created a comprehensive 16-camera system plan providing complete facility coverage. The design included:

• 2 cameras at main entrance: One exterior for entry documentation, one interior for detailed visitor identification
• 2 cameras at receiving/shipping area: Documenting all incoming and outgoing materials
• 1 camera in warehouse office: Monitoring administrative areas and computer access
• 4 cameras throughout warehouse floor: Providing complete coverage of high-value inventory locations with no blind spots
• 2 cameras in hallways: Documenting all warehouse movement throughout facility
• 2 cameras at secondary exits: Monitoring all building egress points
• 1 camera at parking area: Monitoring employee and visitor vehicles

Equipment Selection and Specification

For this 16-camera system, DFW Wholesale Security selected professional-grade components:

• 14 HD (1080p) IP cameras: Providing clear video sufficient for identification of individuals and activities
• 2 4K cameras: Positioned at key access points (main entrance and receiving area) for maximum detail capture
• Professional PoE network switch: 16-port managed switch with intelligent power distribution and network monitoring
• Professional NVR (Network Video Recorder): 16-channel recorder with 8TB storage capacity for 30+ days of continuous recording
• Network accessories: Cat6 ethernet cabling, professional RJ45 terminations, cable management hardware
• Cloud backup service: Automatic uploading of critical footage to secure offsite servers

Network Infrastructure Installation

Professional network infrastructure was critical for this large system. Installation included:

• Cable planning: Mapped cable routes through ceiling to all camera locations minimizing visible wiring
• Professional cable installation: Ran 16 separate Cat6 ethernet cables from PoE switch to each camera location
• Conduit protection: Protected cables in professional conduit through areas subject to damage or weather exposure
• Terminations: Professional RJ45 terminations at switch and each camera location with comprehensive labeling
• Testing: Tested each cable run for continuity and proper function before finalizing installation

The network switch was located in the warehouse office area providing central power and data distribution to all cameras. PoE power delivery through single ethernet cables eliminated the need for separate electrical lines to each camera, reducing installation complexity and cost.

Camera Installation and Positioning

Strategic camera positioning ensured comprehensive facility coverage with minimal blind spots:

• Main entrance: 4K camera positioned for clear facial identification of all entrants; secondary HD camera positioned for overview of entry area
• Warehouse floor: Cameras mounted 10-12 feet high on warehouse columns providing overhead view of entire floor with strategic positioning to eliminate blind spots behind high shelving
• Receiving area: 4K camera positioned to capture details of incoming materials and associated documentation
• Hallways and exits: Cameras positioned to document all movement and facility egress
• Parking area: Outdoor camera with night vision capability monitoring vehicle parking and facility exterior

System Configuration and Testing

Once physical installation was complete, our technicians configured the system for optimal performance:

• Configured NVR recording settings for 24/7 continuous recording at 30 frames per second
• Set motion detection zones in high-value inventory areas with email alerts to management
• Configured 30-day rolling storage with automatic deletion of older footage
• Set up cloud backup for critical areas (main entrance, receiving) with automatic daily uploads
• Configured remote access allowing warehouse manager to monitor system via web browser or mobile app
• Tested all 16 cameras to verify proper operation, focus, and coverage

Results and Business Impact

The 16-camera commercial security system delivered significant benefits for this Fort Worth warehouse facility:

• Deterrent effect: Visible cameras and system signage significantly reduced suspicious activity
• Incident documentation: Multiple theft attempts were captured on video providing clear evidence
• Employee accountability: Employees aware of comprehensive monitoring became more conscientious about security protocols
• Loss reduction: Inventory loss declined significantly after system installation
• Peace of mind: Warehouse manager could monitor facility after hours via mobile app
• Investigation capability: When incidents occurred, clear video documentation enabled investigation and law enforcement cooperation

The warehouse facility reported approximately 70% reduction in inventory loss within the first month of system operation, demonstrating the powerful deterrent effect of comprehensive professional surveillance.

Why This Project Demonstrates DFW Wholesale Security's Expertise

This 16-camera warehouse installation demonstrates DFW Wholesale Security's capabilities:

• Comprehensive site assessment identifying actual security needs
• Professional system design providing complete facility coverage
• Expert network infrastructure installation supporting large multi-camera systems
• Proper camera positioning for optimal security effectiveness
• Configuration and setup ensuring reliable 24/7 operation
• Real-world results showing significant reduction in security incidents

Fort Worth Businesses Need Professional Security

If your Fort Worth warehouse, office, retail location, or other business facility faces security challenges, professional surveillance systems provide documented solutions. DFW Wholesale Security brings extensive experience designing and installing commercial security systems that protect assets, reduce loss, and provide valuable documentation for investigation and law enforcement.

Ready to implement professional security for your Fort Worth facility? Contact DFW Wholesale Security for a free site assessment and system recommendation. Call 817-231-2962 to discuss your specific security needs.
